Livestream yourself!

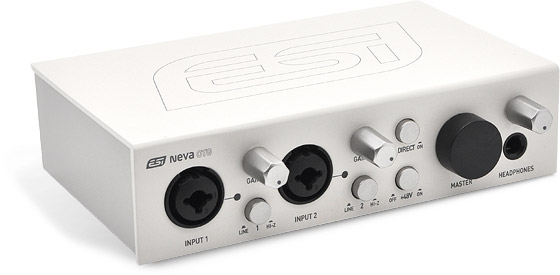

Neva OTG is a professional Dual USB-C audio interface for Mac and PC to connect microphones, synthesizers or guitars and to monitor signals with headphones or studio monitors in high level 24-bit / 192 kHz audio quality - all while simultaneously being able to stream via many portable devices such your mobile phone using the secondary USB-C sub OTG port.

This unique hardware solution is a special device perfect for livestreaming and podcasting with very few similar alternatives available on the market.



Features

  • USB audio interface with USB-C connector, USB 2.0 compatible ("type A" to "type C" cable included)
  • USB bus powered
  • 2 input / 2 output channels at 24-bit / 192kHz
  • 2x XLR microphone preamp with +48V phantom power support
  • 2x Hi-Z input
  • line output with balanced/unbalanced 1/4" TRS connectors
  • headphone output with 1/4" connector and separate volume control
  • ADC with 97dB(a) dynamic range / DAC with 107dB(a) dynamic range
  • frequency response: 20Hz to 20kHz, +/- 0.02 dB
  • input gain range: 50dB
  • input impedance: line 10 KOhm / mic 3.3 KOhm / Hi-Z 500 KOhm
  • line max. output level (balanced): 15.7dBu - headphone impedance: 32 Ohm
  • headphone max. output level: 8.5dBu
  • real time hardware input monitoring activated by switch
  • master output volume control
  • stereo hardware loopback channel for internal recording
  • EWDM driver supports Windows 10 / 11 with ASIO 2.0, MME, WDM and DirectSound
  • supports OS X / macOS (10.9 and above) via the native CoreAudio USB audio driver from Apple (no driver installation needed)
  • 100% class compliant (no driver installation required on many modern operating systems such as Linux via ALSA)
  • connection to mobile devices (i.e. iPhone, iPad, other smart phones or tablets) via secondary USB-C sub OTG port (USB 2.0 audio interface) or TRRS analog audio cable


EWDM DirectWIRE

Connectors & Functions


XLR / TRS Combo Input 1 to connect a microphone via XLR cable, a line signal via 1/4" TRS connector or an electric guitar with 1/4" TS connector.
XLR / TRS Combo Input 2 to connect a microphone via XLR cable, a line signal via 1/4" TRS connector or an electric guitar with 1/4" TS connector.
Gain Knob 1 to change the input gain / input level for input 1. There is a Peak LED below it, in case the level is too high and the signal clips.
Gain Knob 2 to change the input gain / input level for input 2. There is a Peak LED below it, in case the level is too high and the signal clips.
Line Hi-Z Switch 1 for input 1 to switch between Line / Microphone signals and Hi-Z guitar signals.
Line Hi-Z Switch 2 for input 2 to switch between Line / Microphone signals and Hi-Z guitar signals.
Direct Monitoring Switch to enable or disable input monitoring to listen to the input signals.
+48V Phantom Power Switch to provide power for condenser microphones
Master Volume Knob to control the master output volume of the main line output signal.
Headphone Volume Knob to change the output volume for connected headphones.
Headphone Output to connect headphones.
Line Output 1 / 2 to connect the left and right channels of the master line level output signal via a 1/4" TRS cable.
Phone TRRS allows you to connect to the headset connector of a mobile phone or tablet via a special 1/8" TRRS cable (included).
Subsidiary OTG USB-C connector to connect directly to a mobile phone or tablet either via USB-C to USB-C cable, via a special USB OTG adapter cable or via a camera adapter for Lightning ports.
USB-C Connector to connect the audio interface to a PC or Mac.

Everything you need to record and process audio ...


As an extended advanced version our Neva Duo, this well built 24-bit / 192 kHz USB-C audio interface can easily become the center of your home studio. The bus powered Plug & Play solution works with any modern Mac (Intel or M1 CPU or better) and PC (Windows 10 and higher). You can use the integrated 2 preamps with 48V phantom power for condenser or dynamic microphones with up to 50dB gain using XLR inputs or connect an electric guitars via 1/4" Hi-Z inputs. On the output side, there is an integrated headphone amplifier and there are stereo TRS outputs with master volume control allowing you to connect a mixer, amplifier or active speakers. You can monitor incoming audio signals with zero latency, just push the direct monitor button. The total of 2 inputs with 97dB(a) dynamic range and 2 outputs with 107dB(a) dynamic range can be used for line level signals as well.

Neva OTG is compatible with virtually all common audio software thanks to our professional low latency ASIO 2.0 driver for Windows and CoreAudio compatibility on the Mac.

All this turns Neva OTG into an ideal device to do the work required in the world of digital audio recording, no matter if you create your own music, if you want to mix and edit audio, if you work on your podcast and of course for live streaming.

... and everything you need to go live with your phone


All the functions of this powerful audio interface come with the option to connect your phone or other mobile device (i.e. an iPhone or iPad) to live stream / broadcast or record your audio output signals in realtime using any streaming app on the phone. To do this, you simply connect the phone or tablet to the secondary USB-C sub OTG port, start your favorite app and you have professional audio from your computer on your phone. Any common live streaming app will work as well as recording or podcasting apps and of course audio / video VoIP apps can be used as well.

Neva OTG provides the connection of your powerful PC/Mac audio software with your phone - in realtime.

Bundled Software


In order to get you started right out of the box, Neva OTG ships with a powerful software package for professional recording, creation of your own songs, mixing of any audio content and much more. The following applications are currently included:

  Bitwig 8-Track

Bitwig Studio 8-Track - the trim and effective DAW to start producing, performing, and designing sounds like a pro for use on up to eight tracks of audio / MIDI, incl. the Bitwig Essentials Package, a versatile selection of handpicked presets and sounds. Record instruments, create your arrangements, design new sounds, or just jam - every feature has been developed by musicians, for musicians!



  Steinberg WaveLab LE

Whether you are a hobby musician, home studio owner, freelancer or podcaster - WaveLab LE helps you to bring your music, voice and sound recordings to a more professional level. This easy-to-use mastering and audio editing software from Steinberg turns your computer with Neva OTG into an audio analyzing, editing and publishing studio.



  Audified inTone 2 ESI Edition

inTone 2 ESI Edition by Audified is a powerful jamming tool to produce mixes of multiple audio signals and instruments, play files, change tracks, prepare streams for podcasts and recordings. As an effects host you can use it with the included GK Amplification 2 LE and ampLion Free as a bass and guitar amp simulator and much more - anything you need for your creativity!



  JackTrip Virtual Studio

Included with Neva OTG is a 3 month subscription with up to 3000 minutes each for the JackTrip Virtual Studio allowing you to sing with your chorus or jam with your band online from home. JackTrip streams your uncompressed lossless audio. Delivering pristine sound so that musicians can keep the beat and stay in harmony, JackTrip creates the sense of proximity that sparks real creativity, the experience of being together in the same room even when hundreds of miles apart.



  Steinberg Cubasis LE

Cubasis LE is the compact version of Steinberg's mobile multitouch sequencer, providing the same look and feel of its bigger brother Cubasis. Specially designed for quick and easy operation, Cubasis LE makes recording, editing and mixing a breeze, no matter where you are, right there on an iPhone or iPad when connecting Neva OTG.



Our website always shows the latest information on what we currently ship with our products. Depending on the production date, it can sometimes be possible that a different software package is included with the Neva OTG at a local reseller. The actual content is mentioned on the retail box of the product itself. If you are unsure, please contact us.
